Stand Alone Inverters for the farmer market: 36V 5kVA
- Nominal Battery Voltage: 36 Vdc
- Output Voltage: 220 – 230 Vac Settable, 50 Hz
- Waveform: Pure Sine Wave
- Total Harmonic Distortion: < 3%
- Continuous Power @25°C : 5000 VA
- Maximum Output Power: 15 kVA for 5 sec
- Efficiency : >90%
- Power Consumption-Puls Mode: 5W
- Power Consumption – ON: 34W
- Dimensions (dxhxw) : 370mm x 260mm x 600mm
- Weight: 44kg
Generator Assisted Inverter or Grid Assisted Inverter
Inverter Specifications
- Nominal Battery Voltage: 36V / 48 Vdc
- Output Voltage: 220 – 230 Vac Settable, 50 Hz
- Waveform: Pure Sine Wave
- Total Harmonic Distortion (resistive load): < 3%
- Output Power for 30 min @25°C : 6000VA / 6000 VA
- Continuous Power @25°C : 5000VA / 6000 VA
- Maximum Output Power : 18kVA / 18 kVA for 5 s
- Efficiency : >90% / >92%
- Power Consumption – idle: 34W / 39W
Charger Specifications
- Input Voltage: 180Vac – 270Vac
- Input Current : 15 Amps / 17.5 Amps ac
- Charging Current : 70 Amps dc / 60 Amps dc
General Specifications
- Dimensions (w x h x d) : 630mm x 320mm x 350mm
- Weight: 53kg / 55 kg

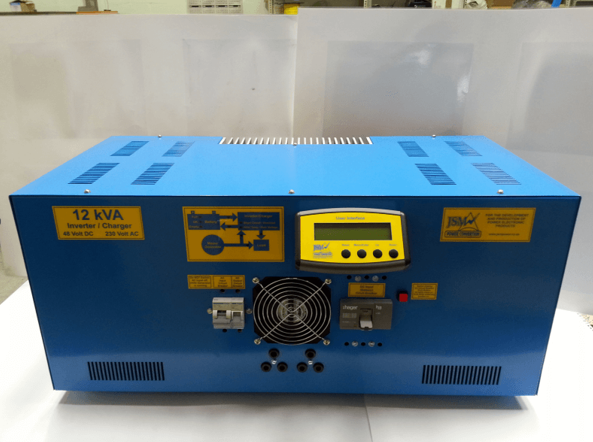

Generator Assisted Inverter or as a Grid Assisted Inverter
Inverter Specifications
- Nominal Battery Voltage: 36V / 48 Vdc
- Output Voltage: 220 – 230 Vac Settable, 50 Hz
- Waveform: Pure Sine Wave
- Total Harmonic Distortion (resistive load): < 3%
- Output Power for 30 min @25°C : 12000VA / 12000 VA
- Continuous Power @25°C : 10000VA / 12000 VA
- Maximum Output Power: 36kVA / 18 kVA for 5 s
- Efficiency : >90% / >92%
- Power Consumption – idle: 68W / 78W
Charger Specifications
- Input Voltage: 180Vac – 270Vac
- Input Current: 30 Amps / 35 Amps ac
- Charging Current: 140 Amps dc / 120 Amps dc
General Specifications
- Dimensions (w x h x d) : 760mm x 360mm x 460mm
- Weight: 95kg / 100 kg
80A MPPT Solar Regulator
Charger Specifications
- Solar Input Voltage Range: 30 – 200 Vdc
- MPPT Voltage Range: 30 – 160 Vdc
- Battery Output Voltage: 24V, 36V or 48 (self detect)
- Output Current: 80A max (settable)
- Charging Scheme: Equalize/Boost/Float
- Efficiency : >95%
General Specifications
- Dimensions (d x h x w) : 160mm x 305mm x 240mm
- Weight: 7 kg
